Rigid-flex 6-Layer PCB Stackup design

Layer Count	6
Flex Layer Count	2
Rigid Layer Count	4

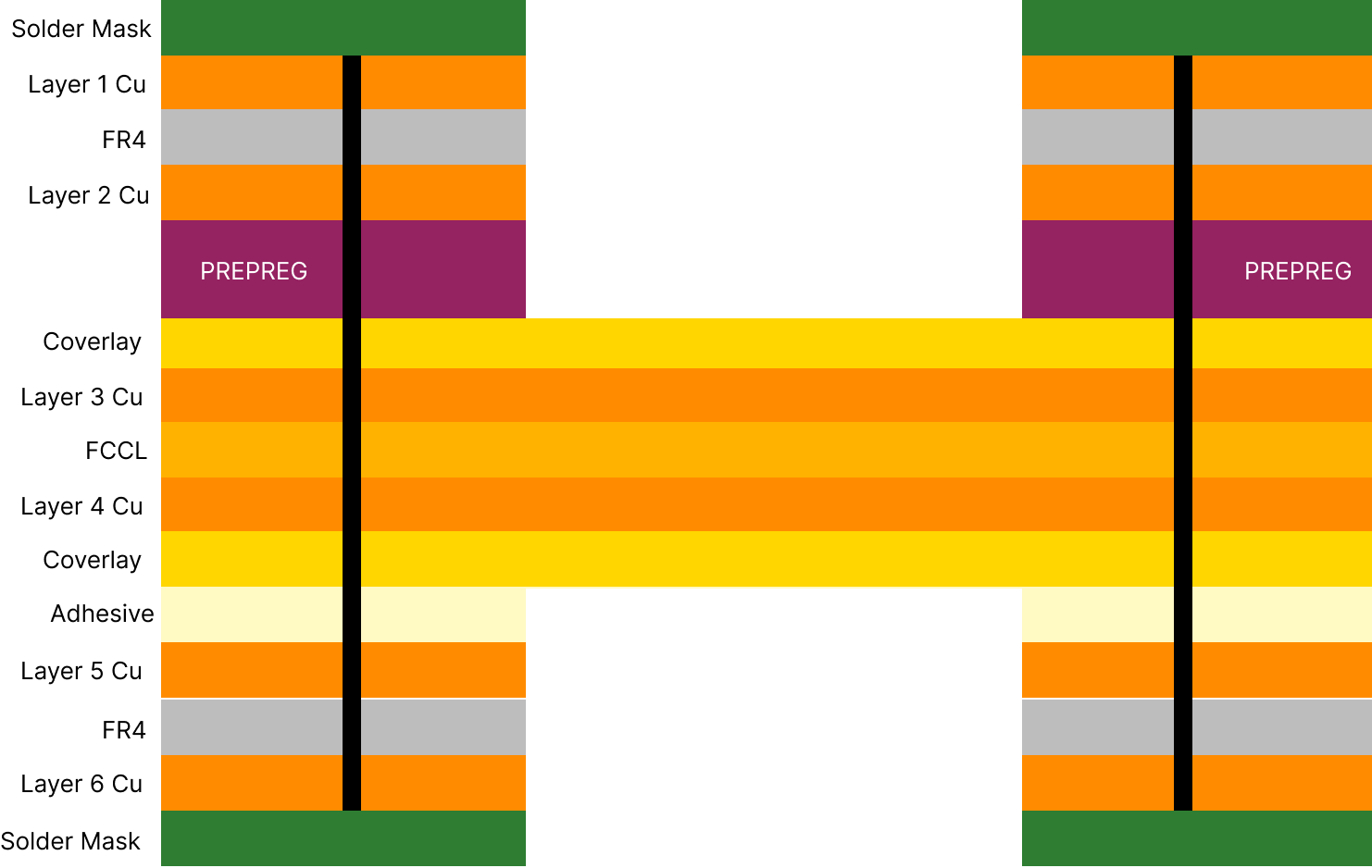

Flex Substrates	Standard Adhesive Flex Material
Stucture	Flex layer in the inner layer
	rigid-flex-6layer-stackup

Layer Count	6
Flex Layer Count	4
Rigid Layer Count	2
Flex Substrates	Adhesiveless Material

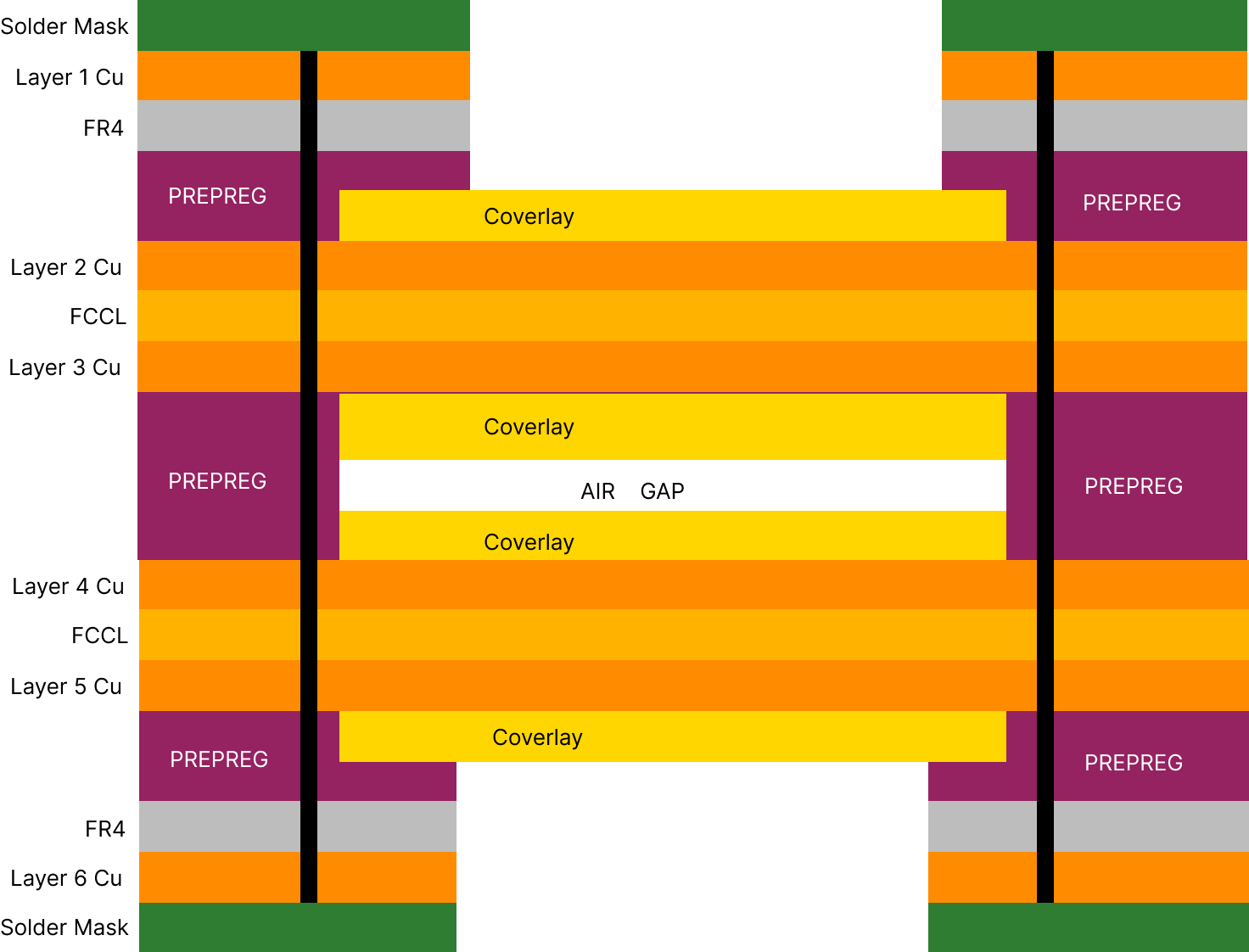

Stucture	Flex layer in the inner layer, air-gap structure, with glue dispensing.

Layer Count	6
Flex Layer Count	2
Rigid Layer Count	4
Flex Substrates	Standard Adhesive-based Material

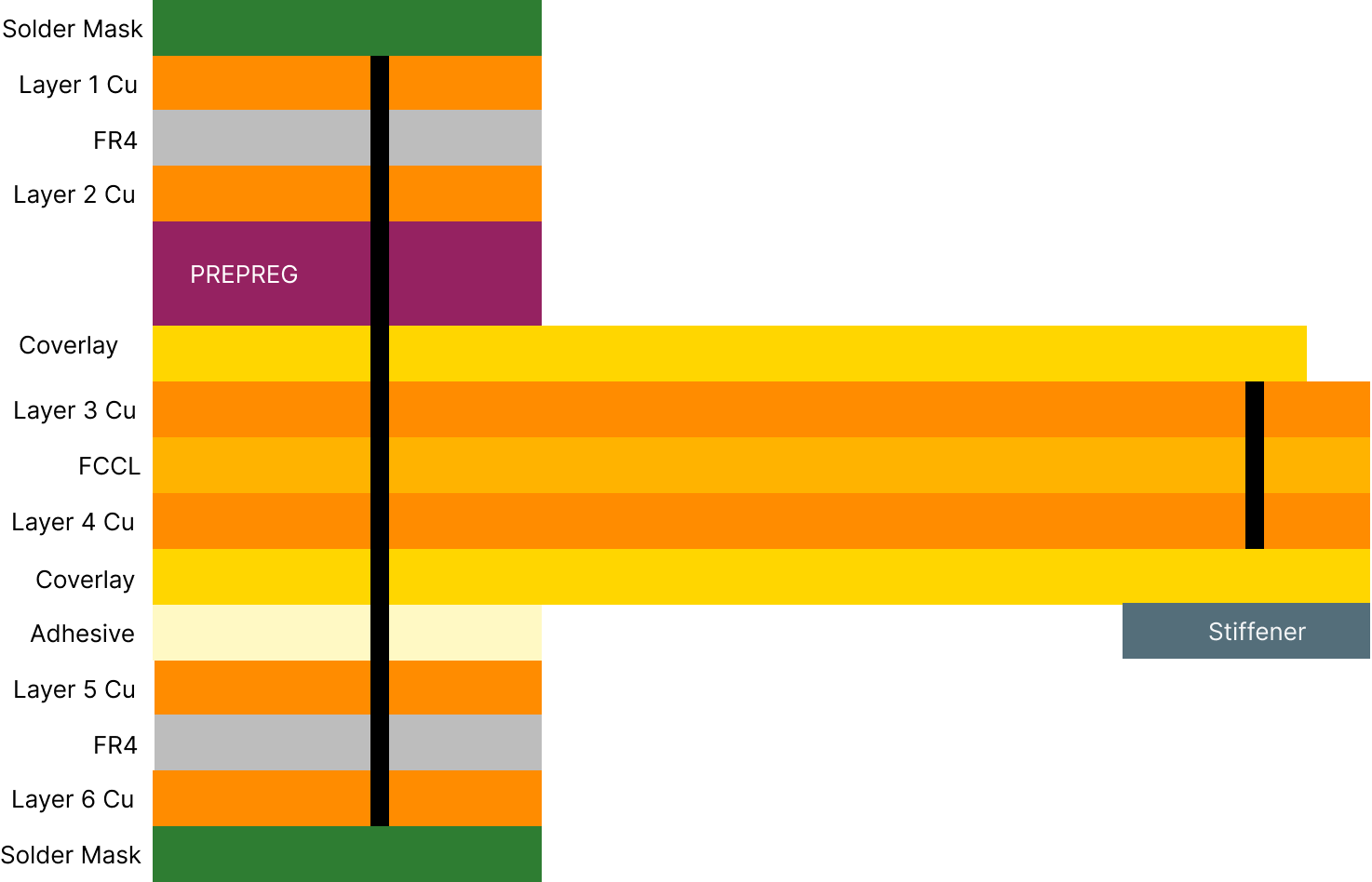

Stucture	Internal flex layer with exposed pads, vias, and stiffeners.
	2rigid-flex-6layer-stackup
