Low-Frequency RFID Tags
| Product Name | Low-Frequency RFID Blank Tags. |
|---|---|
| Chip Options | EM4100, TK4100, EM4200, T5577, ATA5577, HID-compatible chips, and more. |
| Chip Specifications | Operating frequency: 125 kHz. Supports ISO/IEC 11784/11785 or supplier-specific protocols. Reading distance is about 2–10 cm, depending on the environment and reader device. |
| Size Options | Common sizes include round tags in 25 mm, 30 mm, and 35 mm. Rectangular sizes include 85 × 54 mm card size and 40 × 15 mm. Custom packaging is available, such as key fobs, epoxy tags, and wristbands. |
| Customization | Supports logo printing, serial numbers, QR codes, barcodes, data pre-writing, chip encryption, laser marking, and other custom options. |

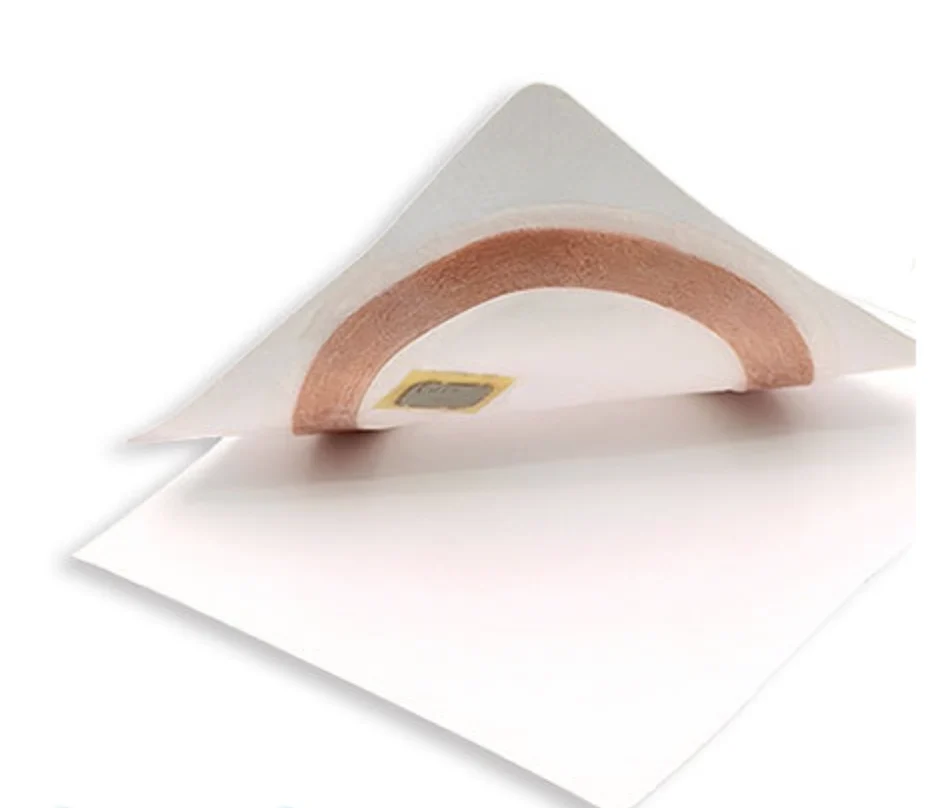

RFID Tag Structure
Dimensions
COB + Coil
Structure
Product Features
- Optional Materials: Coated paper, PVC, PET, thermal paper, and PP synthetic paper.
- Memory Capacity: 64 bit.
- Operating Frequency: 125 kHz.
- Data Retention: More than 10 years.
- Operating Temperature: -40°C to 85°C.
- Read / Write Cycles: More than 100,000 times.
- Application: Widely used in access control systems, identity identification, attendance management, pet identification, elevator control, membership management, equipment identification, and other short-range identification environments.
Chip Features
- 64-bit memory array programmed by laser.
- Wide dynamic range in the chip buffer area.
- On-chip power and voltage limiter.
- On-chip full-wave rectifier converter.
- Low-impedance modulation driver with high modulation depth.
- Very small chip size, suitable for transplant applications.
- Integrated 480 pF resonant capacitor inside the chip.
- Integrated energy storage buffer capacitor inside the chip.
- Operating frequency range: 100–150 kHz, with a typical value of 125 kHz.
- Very low power consumption.
It uses Manchester modulation coding. In the typical mode, the ratio of the RF period to the data bit period is RF/64. When an AC induced voltage of at least 3.5 Vpp is generated at both ends of the external coil of the TK4100 chip, and the coil clock frequency is about 125 kHz, the chip powers on and starts working. The operating temperature range can reach -40°C to +85°C.
