What is UHF RFID?
UHF RFID is an ultra-high frequency radio identification technology that works at 860–960 MHz. It uses RFID chips and antennas to communicate with readers without contact. Common chip options include Impinj Monza R6/R6-P, NXP UCODE 8/9, Alien Higgs-3/4, and compatible chips. UHF RFID labels support long reading distance, batch identification, EPC writing, encryption, and fast data collection.

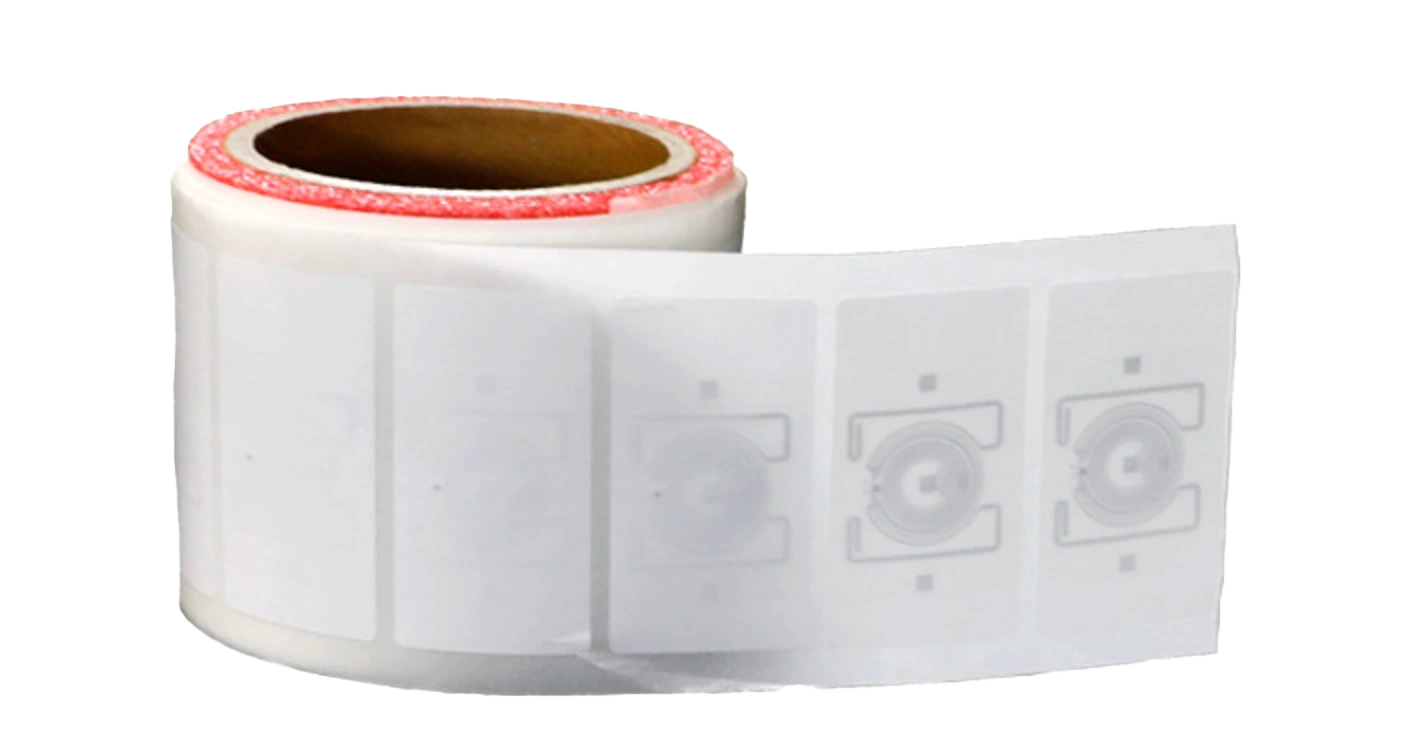

UHF RFID Windshield Tag
| Chip Type | Alien H9 | Storage Capacity | 96-bit EPC |
|---|---|---|---|
| Operating Frequency | 860MHz–960MHz | Reading Distance | About 8m |
| Operating Mode | Passive | Size | 97 × 27mm |
| Operating Protocol | IBD18000-6C EPC Class1 GEN2 | ||
| Material Process | Coated paper / dry inlay / wet inlay / PET + 3M adhesive | ||
| Service Life | Can be repeatedly written 100,000 times, with data retention for 50 years | ||
| Installation Method | Attach to the surface of non-metallic objects | ||

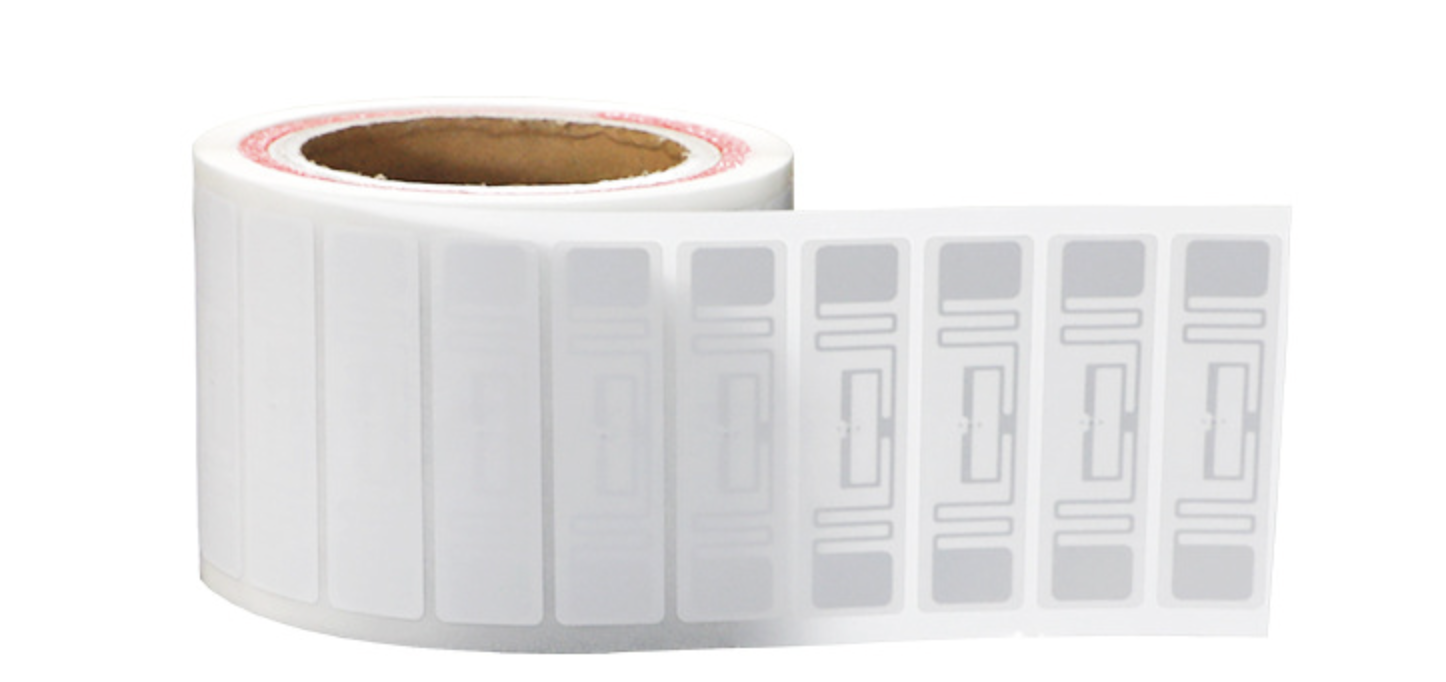

RFID Jewelry Tag
| Chip Type | NXP UCODE 8 | Storage Capacity | 128-bit EPC |
|---|---|---|---|
| Operating Frequency | 860MHz–960MHz | Reading Distance | About 10m |
| Operating Mode | Passive | Size | 73 × 20mm |
| Operating Protocol | IBD18000-6C EPC Class1 GEN2 | ||
| Material Process | Coated paper / dry inlay / wet inlay / PET + 3M adhesive | ||
| Service Life | Can be repeatedly written 100,000 times, with data retention for 50 years | ||
| Installation Method | Attach to the surface of non-metallic objects | ||

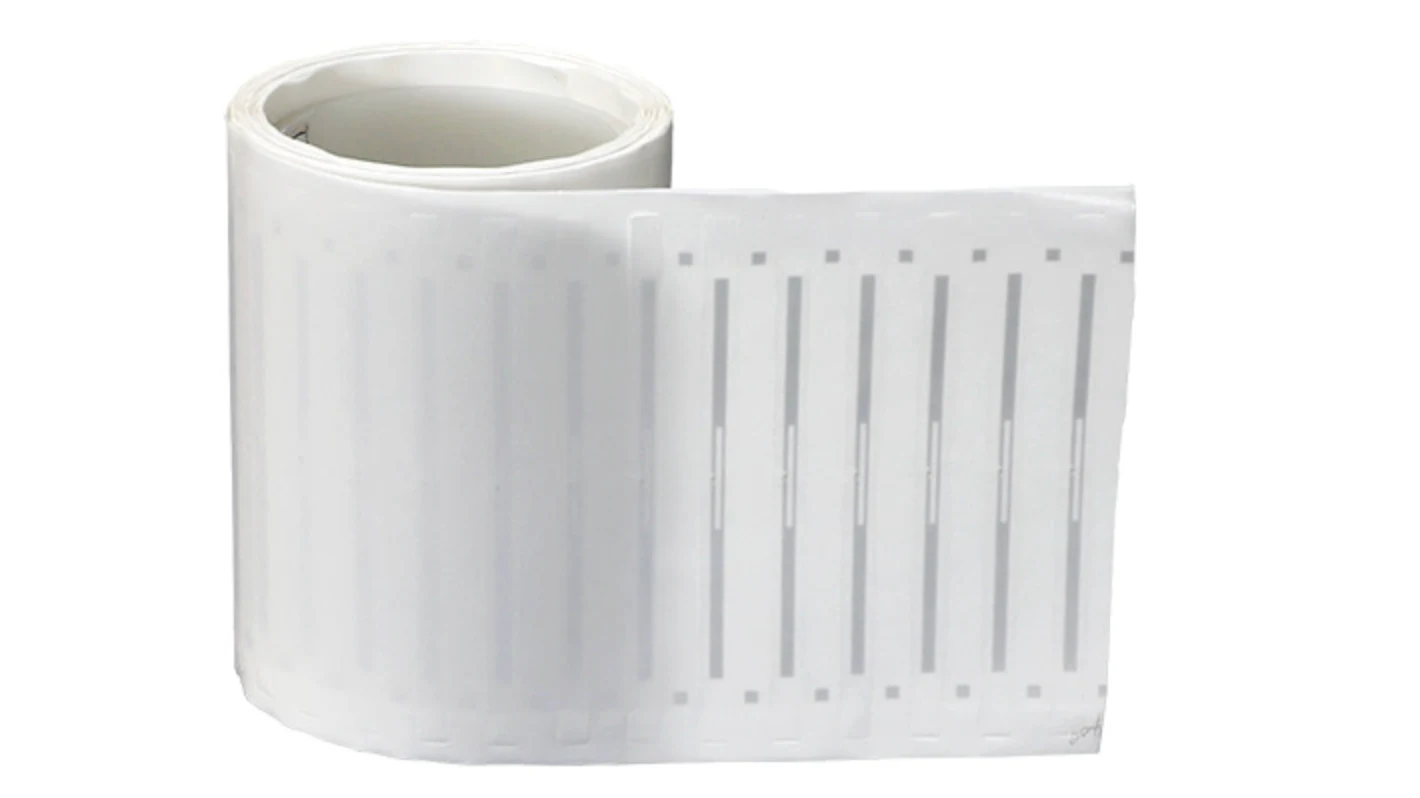

UHF RFID Book Tag
| Chip Type | NXP UCODE 8 | Storage Capacity | 128-bit EPC |
|---|---|---|---|
| Operating Frequency | 860MHz–960MHz | Reading Distance | About 10m |
| Operating Mode | Passive | Size | 73 × 20mm |
| Operating Protocol | IBD18000-6C EPC Class1 GEN2 | ||
| Material Process | Coated paper / dry inlay / wet inlay / PET + 3M adhesive | ||
| Service Life | Can be repeatedly written 100,000 times, with data retention for 50 years | ||
| Installation Method | Attach to the surface of non-metallic objects | ||

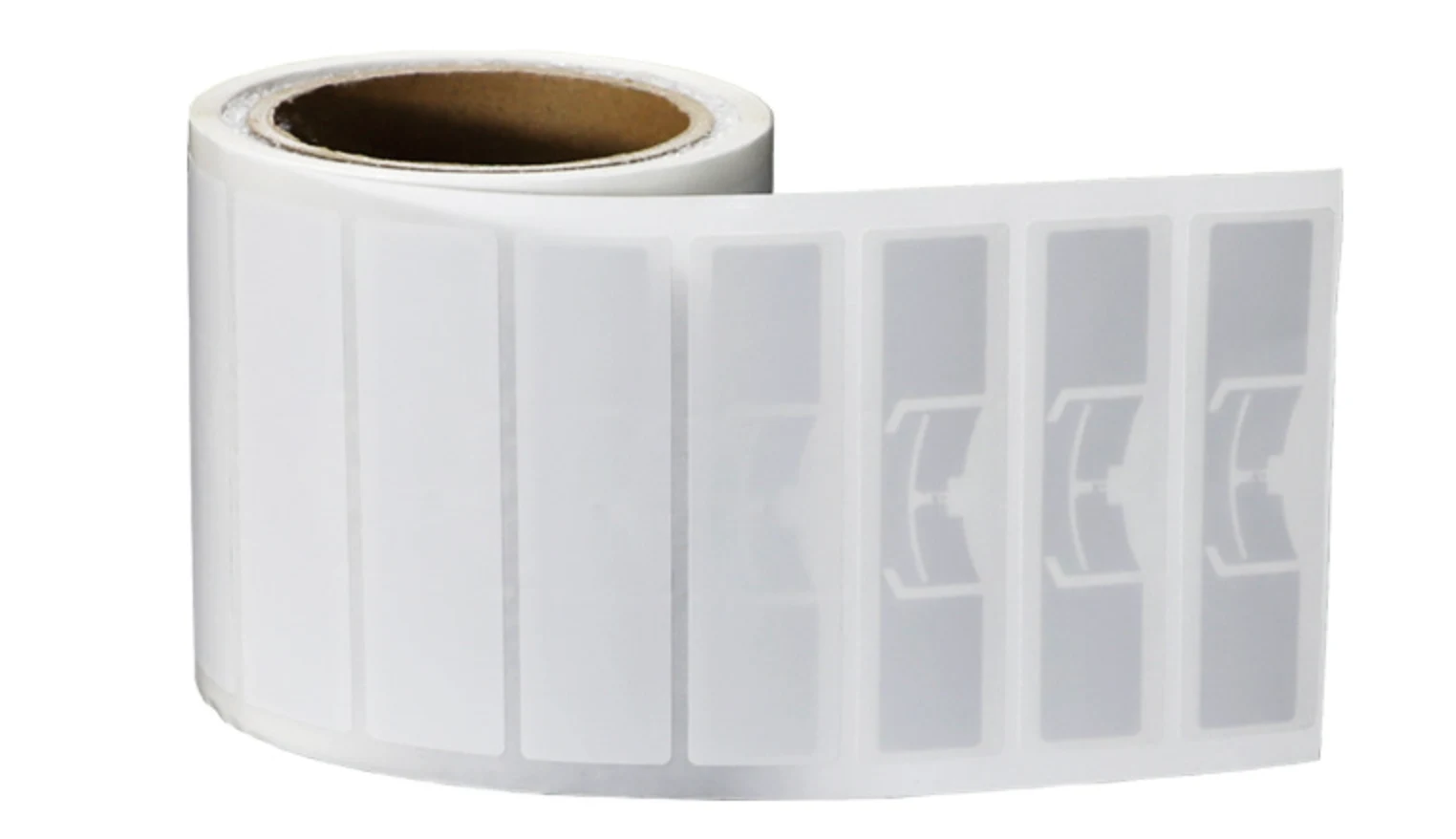

RFID UHF DUAL Tag
| Chip Type: | EM4423 | Storage Capacity: | 128-bit EPC |
| Operating Frequency: | 860MHz-960MHz | Reading Distance: | About 6m |
| Operating Mode: | Passive | Size: | 65*35mm |
| Protocol: | IBD18000-6C EPC Class1 GEN2 | ||
| Material Process: | Coated paper / Dry inlay / Wet inlay / PET + 3M adhesive | ||
| Service Life: | Rewritable up to 100,000 times, data retention for 50 years | ||
| Installation Method: | Attached to the surface of non-metallic items | ||
Need custom UHF RFID Printed tags?
Contact us for chip options, sizes, printing, encoding, and bulk pricing.
