PCB Assembly Service
HXD provides turnkey PCB assembly services . Whether you need small volume PCB assembly for testing or high volume PCB assembly for mass production, we delivers reliable quality at every stage.
PCB Assembly Services from Prototype to Production
HXD provides complete PCB board assembly services, including PCB fabrication, component sourcing, SMT and through-hole assembly, inspection, testing, and final delivery.
01
02
03
04
Prototype PCB Assembly
Fast and reliable prototype assembly services to validate designs before full-scale production.
Low-Volume PCB Assembly
Flexible low-volume PCBA solutions for startups, engineering teams, and small production runs.
SMT Assembly
Surface-mounted components placed directly onto PCB surfaces.
THT Assembly
Through-hole components inserted into PCB holes and soldered.
The Quick-Turn PCB Assembly Process
HXD manages the process from design files to assembled boards. Most PCB board assembly projects follow the steps below.
1. Design and File Review
Submit your Gerber files, bill of materials (BOM), and pick-and-place files. Engineers use automated checks and manual reviews to assess manufacturability. The review identifies potential fabrication and assembly issues before production begins.
2. PCB Fabrication and Stencil Production
The factory produces the bare PCBs and SMT stencil in parallel. This reduces waiting time and prepares both for assembly.
3. Component Sourcing and Preparation
HXD stocks common SMT components, including resistors and capacitors. Customers can choose between two service options:
Turnkey PCB assembly: HXD sources the components and manages assembly.
Consigned PCB assembly: Customers supply the components, and HXD assembles the boards.
4. SMT and Through-Hole Assembly
SMT equipment places surface-mount components on the boards. The team also completes through-hole assembly and soldering where the design requires it.
5. Inspection and Testing
The inspection plan follows the board design and agreed quality requirements. Checks include:

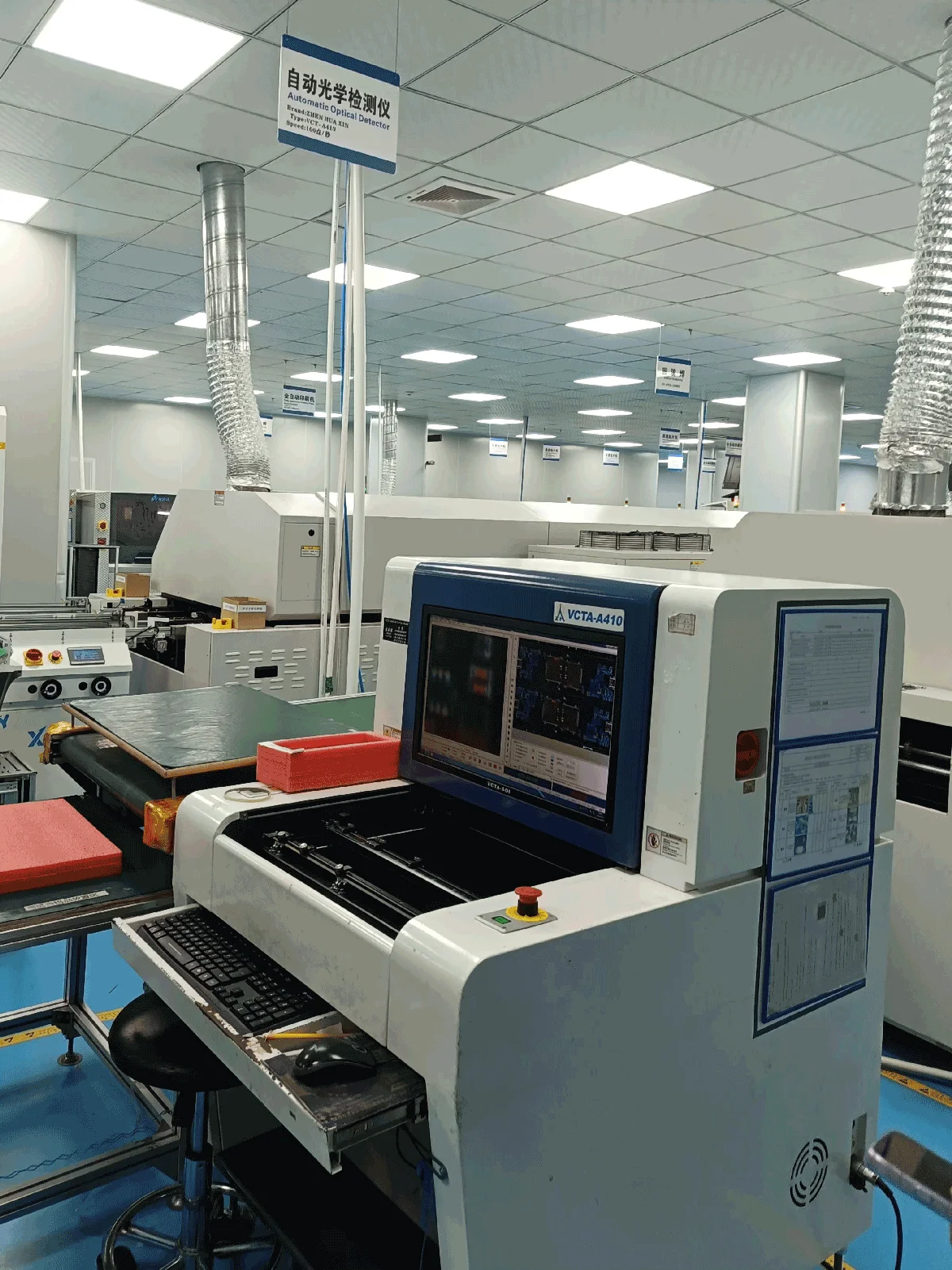

AOI to inspect component placement and visible solder joints;
X-ray inspection for hidden solder joints, including BGA and relevant QFN connections;

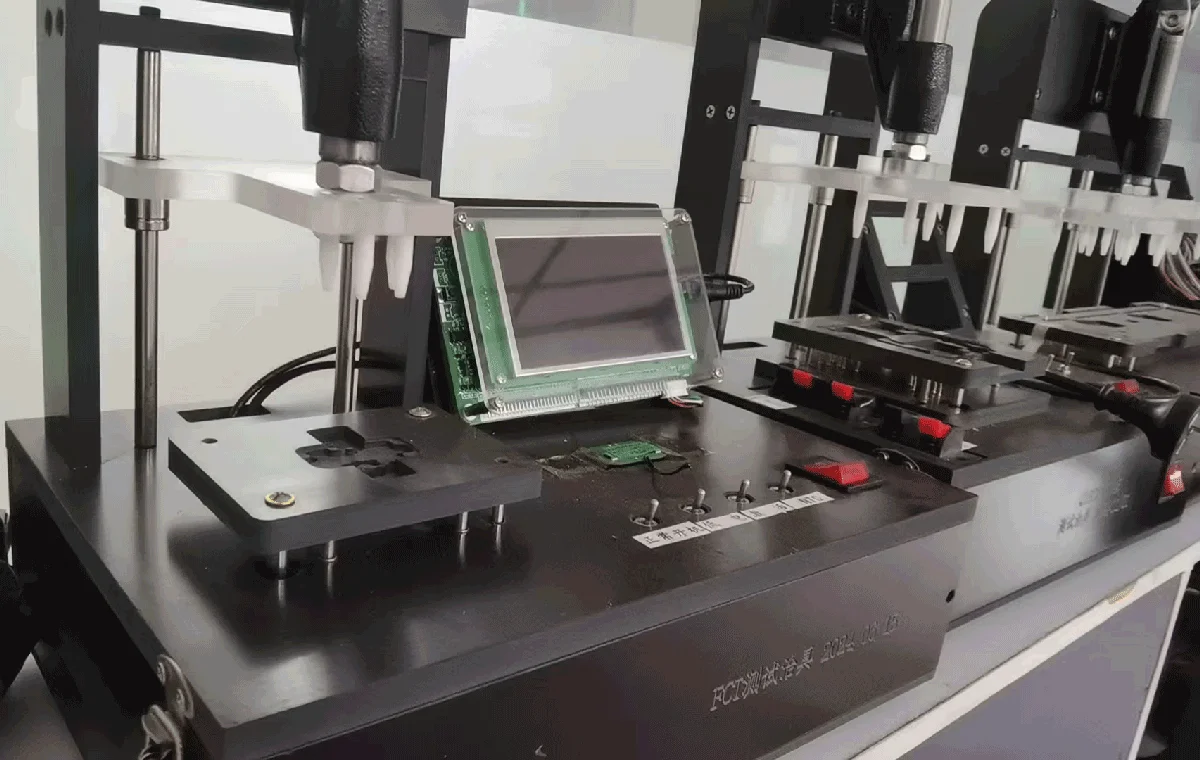

Functional circuit testing (FCT), when required by the project HXD inspects assemblies against the agreed IPC-A-610 acceptance criteria.
Work with us as your single partner for PCB manufacturing, component sourcing, and assembly.
Pre-Production Engineering

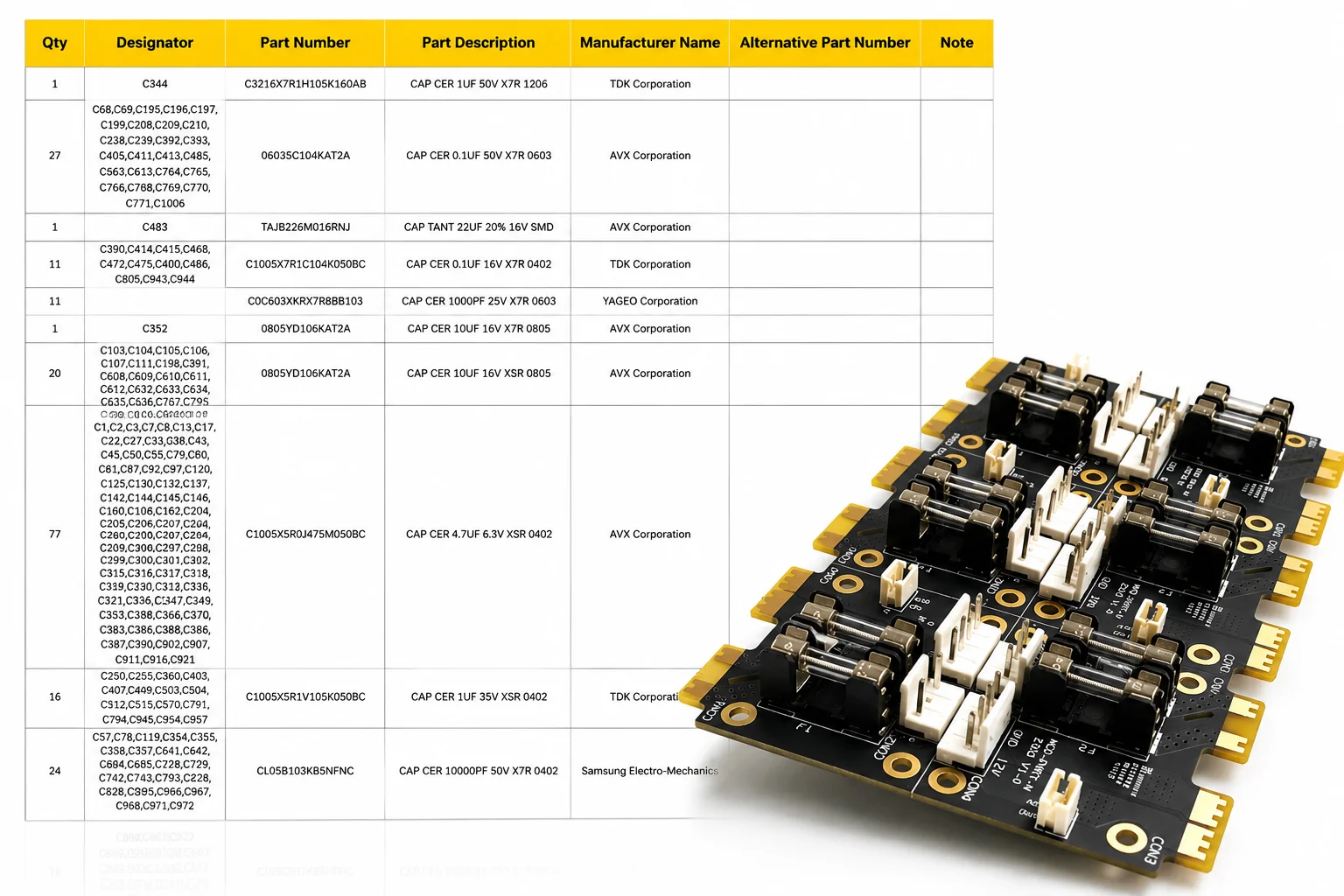

We start every PCB Assembly project with a complete understanding of your Gerber files, assembly data, BOM, component packages, and testing requirements — ensuring the right process, cost, and production plan from the beginning.
PCB Assembly Capabilities
Capabilities are evaluated against your actual component set, board construction, process controls and test plan during quotation.
Assembly technology
SMT, through-hole and mixed-technology assembly
Component Capabilities
Supporting fine-pitch components, BGAs, connectors, power devices, and mechanical parts.
Board complexity
Handling rigid, flex, and rigid-flex PCB assemblies for different design and production requirements.
Process options
Offering lead-free assembly, selective soldering, manual operations, and process control for specific applications.
Programming & test
Programming, ICT/FCT support and customer-defined verification
Final Assembly
Supporting cable installation, enclosure assembly, labeling, and box-build services for complete product delivery.
MIXED TECHNOLOGY
DENSE COMPONENT MIX
PANEL ASSEMBLY
Inspection & Testing
Inspection coverage is planned around the component mix, joint visibility and functional requirement—not reduced to a generic checklist.
Incoming & pre-line checks
Material condition, identity, quantity and build-package readiness are checked before production release.
Process inspection
First-article and in-process checkpoints verify setup, polarity, placement and workmanship against the released data.
AOI and joint verification
AOI, visual review and additional methods are selected according to package geometry and visibility.
Electrical & functional testing
Customer-defined programming, ICT or FCT requirements are incorporated into the agreed manufacturing plan.
Need PCB Assembly for Your Project?
Send us your inquiry and our sales team will reply with a competitive offer for PCB fabrication, assembly, testing, and more.
FAQ
Frequently Asked Questions About PCBA
What is PCB Assembly (PCBA)?
PCB Assembly (PCBA) is the process of mounting electronic components onto a bare PCB to create a complete functional circuit board.
The assembly process includes component sourcing, solder paste printing, SMT placement, through-hole assembly, soldering, inspection, testing, and final delivery.
The assembly process includes component sourcing, solder paste printing, SMT placement, through-hole assembly, soldering, inspection, testing, and final delivery.
What PCB Assembly services do you provide?
HXD provides complete PCB Assembly services, including:
Prototype PCB Assembly
Low-volume PCB Assembly
Turnkey PCB Assembly
Partial Turnkey Assembly
SMT Assembly
Through-hole (THT) Assembly
Mixed Technology Assembly
Inspection and Functional Testing
We support projects from initial prototypes to volume production with flexible manufacturing solutions.
Prototype PCB Assembly
Low-volume PCB Assembly
Turnkey PCB Assembly
Partial Turnkey Assembly
SMT Assembly
Through-hole (THT) Assembly
Mixed Technology Assembly
Inspection and Functional Testing
We support projects from initial prototypes to volume production with flexible manufacturing solutions.
